RTK-MINI HDMI/Ethernet/USB BYOM Table Extension Kit
Leveraging SCTLink™ technology, the RTK-MINI delivers power, video, USB and Ethernet from the conference table to the codec – all over a single CAT cable up to 100 meters, no configuration required. It also provides PoE for a connected touch panel.
Create a Quote
Due to the uncertainty around global tariffs, we’ll be reviewing pricing every 30 days. Please reach out to your SCT representative for more information.
SKU: RTK-MINI Category: Table Extension Kits
RTK-MINI USB Codecs and Video Bars (with the exception of DisplayLink-enabled devices)
Supported Cameras, Codecs and Video Bars
- Any codec or video bar with the exception of USB DisplayLink-enabled devices. For DisplayLink-enabled codecs and video bar extension solutions, please see the RCU3SL USB 3.2 Extension System.
Included in This Kit
- RTK-MINI TX Module
- RTK-MINI RX Module
- RCC-H001-2.0M HDMI® Cable
- RCC-H001-1.0M HDMI® Cable
- [2] RCC-H016-1.0M UTP Cable
- RCC-M006-2.0M USB-Micro-B to USB-A Cable
- RCC-M005-1.0M USB-A to USB-C Cable
- WPS-12 Power Supply
- [2] Sets of Table Kit Brackets
RTK-MINI-X30 for Poly X-Series
Supported Cameras, Codecs and Video Bars
- Poly Studio X-Series
- Poly Studio V-Series
Included in This Kit
- RTK-MINI TX Module
- RTK-MINI RX Module
- RCC-M006-2.0M USB-A to USB Micro-B Cable
- RCC-H001-2.0M HDMI® Cable
- RCC-H001-1.0M HDMI® Cable
- RCC-H016-1.0M UTP Cable
- RCC-M005-1.0M USB-A to USB-C Cable
- WPS-12 Power Supply
- [2] Sets of Table Kit Brackets
Tech Specs
- Power Out: Passive PoE, 48VDC, 7W, Class-2, Mode B per IEEE 802.3af. Touch Panel Power. USB-A Output Power (each): 5VDC @500mA continuous. Overload/short-circuit 1.25A max.
- Video Format: HDMI®, up to 4K 25/30 4:4:4. HDMI® embedded audio, HDCP up to v2.2
- Ethernet Connectivity (RTK-MINI-TX): Single 10/100 Port with PoE. Ethernet Connectivity: 10/100 Three Port Layer 2 Ethernet Switch (one with PoE support)
- USB Link: USB/UVC 2.0 Uni-Directional USB-A (x2) and Micro-B: Receiver to Transmitter or Transmitter to Receiver. USB Tier Usage: 1 tier (hub) per linked set
- Distances up to 328 feet (100 meters) over a single CAT5e or CAT6 STP/UTP cable
- 3-Year limited advance replacement warranty included
Documentation
Design Guide Line Drawings

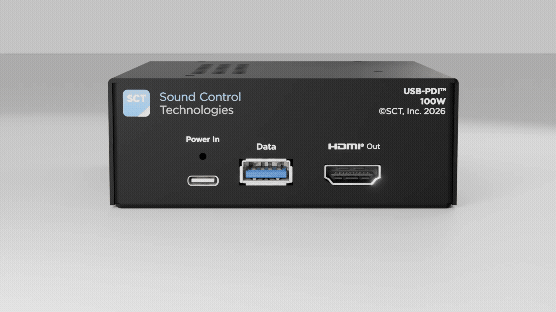

- USB-PDI | RTK-MINI | Cisco Room Bar or Room Bar Pro – Design Guide
- RC5 | RTK-MINI | RTK-USB3 | Cisco PTZ 4K | Cisco Codec Pro – Design Guide
- RTK-MINI | RC5 | Cisco PTZ 4K | Cisco Codec Plus | Clockaudio CRM 200S – Design Guide
- RTK-MINI | USB-AMV | Cisco | HP Poly | AVer | Neat | Logitech
- RTK-MINI | USB-AMV | USB-PDI | Cisco | HP Poly | AVer | Neat | Logitech – Design Guide
- USB-PDI | RTK-MINI | HP Poly G7500 – Design Guide
- USB-PDI | RTK-MINI | HP Poly | AVer – Design Guide
- RTK-MINI | RCU2S | RC4 | HP Poly E70 | HP Poly EagleEye IV | HP Poly G7500 – Design Guide
- USB-PDI | RTK-MINI | HP Poly X30 – Design Guide
- USB-PDI | RTK-MINI | Neat Bar and Neat Bar Pro – Design Guide
- RTK-MINI | Barco CX-20, CX-30, or CX-50 – Design Guide
- USB-PDI | RTK-MINI | Biamp VBC 2800 – Design Guide
- RTK-MINI | USB3-1×2 | RCU2S – Design Guide
- RC8 | RTK-MINI | RTK8CP | Cisco Quad Cam | Cisco Codec Pro – Design Guide
- USB3-1×2 | RTK-MINI – Audio Design Guide
Video Library
Add USB 2.0 Extension and USB-C DP Alt Mode to the Table
